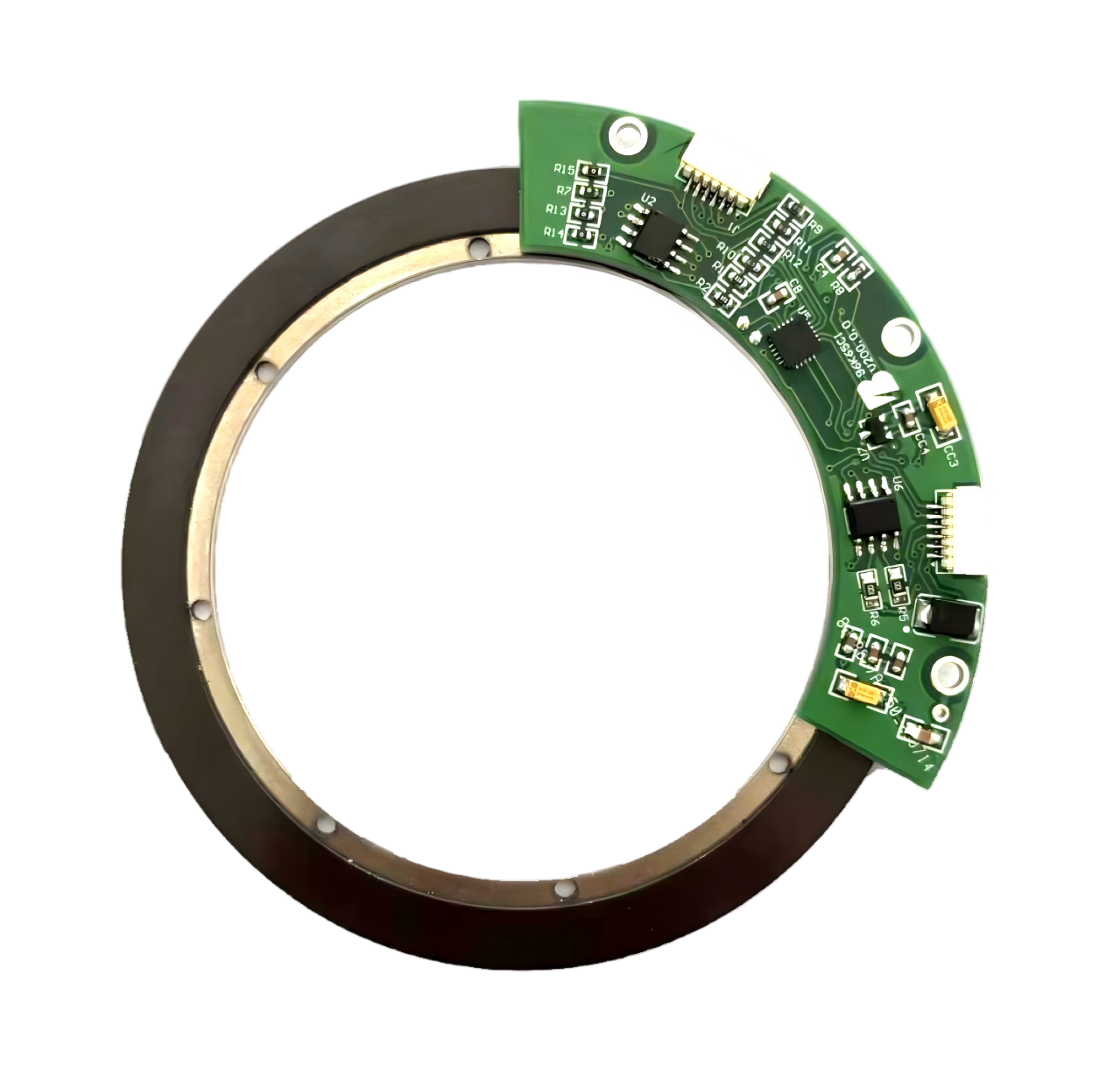

RDE74T absolute rotary encoder magnetic absolute encoder

Resolution

Singleturn-20bit, Multiturn-16bit

Main Supply Voltage

5V ± 10%

Main Supply Current

Max 6mA (Typ. 4mA)

Battery Supply Voltage

3 to 5.5V (Typ. 3.6V)

Battery Supply Current

Max 800µA (Typ. 10µA)

Sensing Method

Magnetic

Magnet pole

Master track – 64 pole pair

Nonius track – 62 pole pair

Operating temperature

-10℃ to +110℃

Communication

BiSS – C Interface

PCB outline

Φ74 x 1.6 (mm)

Magnet outline

Φ mm)

Inner Diameter

Φ25 mm)

Heigth

Magnet material

Ferrite

Flange material

Al6061 / Anodize white

Air Gap

Max 0.5mm

1

VCC

Power Supply Voltage(5V)

2

Data+

Data +differential signal from Encoder to Driver

3

Data-

Data -differential signal from Encoder to Driver

4

CLK+

Clock +differential signal from Driver to Encoder

5

CLK-

Clock -differential signal from Driver to Encoder

.6

GND

System ground

7

Output

PVL nWarning output (Open Drain Port)

8

Input

PVL Preinput (TTL input Port)
