Incremental Rotary Encoder Location Sensor
When the incremental rotary encoder shaft rotates, there is a corresponding pulse output. The discrimination of the direction of rotation and the increase or decrease of the number of pulses are realized by the rear direction judgment circuit and counter. The starting point of the counting can be setting freely, and the infinite cumulative and measurement of multiple circles can be realized. When the number of pulses is fixed and the resolution needs to be increased, the original pulse number can be multiplied by using two signals of 90° phase difference A and B.
Rotary Encoder Incremental Encoder Sensor
Rotary encoder is the sensor which could convert the shaft mechanical displacement to digital or pulse signals. On the incremental encoder disc， there are many square holes equally spaced. The rotary encoder could output the pulse signal through the electrical part reading the holes on disc.
Optical Rotary Encoder Pulse Encoder
Optical rotary encoder has the features of versatile, compact and flexible, photoelectric sensing technology, high accuracy, high precision, heavy duty bearing, long lifetime,high frequency response, universal mounting dimensions and high resolution. Optical pulse encoders apply to the lift, textile machines, cnc spindle, packing machines and conveyor industry.
Encoder Rotary Optical Motor Shaft Encoder
The digital encoder is always used with motors to feedback the shaft position of the motor. Rotary optical encoder has the features of light weight, compact size, high precision, low price, high quality ,imported bearings and high protection class .The rotary transducer is widely applied in light industry such as printing and packaging industry.
Rotary Incremental Encoder
The rotary incremental encoders passed the certification of CE ISO9001 & ROHS and the manufacturer of the incremental encoder has high quality control, better delivery control and better cost control.The rotary incremental encoders are applied to the lift, textile machines, cnc machine tools, packing machines and conveyor industry.

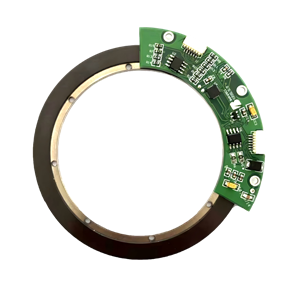

Machine Encoder Rotary Magnetic Encoder
Non contract magnetic ring encoder equipped with the seven different size. The location sensor highest resolution is up to 16384ppr, which can satisfy with the different size of the spindle motor encoder. the sensor is made of the ABZ three phase output`s read head and magnetic source body. The machine encoder read head and magnetic source body sealed in metal shell, and output the industry standard ABZ wave square signals. ROUNDSS rotary magnetic ring encoder with the same advantage as integrated encoder, no need to change the original synchronous pulley and mount it at the position of original synchronous pulley
CNC Rotary Optical Encoder Spindle Motor Encoder
CNC Rotary Optical Encoder Spindle Motor Encoder is an optical rotary spindle motor encoder used in CNC controller.STS series encoder electronic devices are imported from the USA, and optical components are integrated form photoelectric switch modules. The quality is stable and reliable. The grating is made of vibration resistance and high temperature resistant material, which can bear more than 3 times of shock and vibration of the traditional encoder.
Absolute encoder interfaces are more than incremental encoders. For incremental encoders, TTL , line driver, pushpull and open collector interfaces are common. But for absolute encoders, its interface options are more. Generally, two types of interfaces: Parallel and serial interface. Parallet interface is similar to incremental encoder interfaces. But serial interface is more common for absolute encoders, like SSI, BISS, RS485, RS232. Roundss absolute encoders are available with multiple serial interface.Welcome your inquiry at any time.
Multi-Turn Absolute Encoder Rotary encoder
Best Price 12 Bit SSI Multi-Turn Absolute Encoder Rotary encoder:Absolute rotary encoders divide into single-turn absolute encoder and multi-turn absolute encoder. The code track is designed by using Gray code, matrix code, cursor code, pseudo-random code, etc. When the shaft rotates, there is a code output corresponding to the position. From the change in code size, the position of the forward and backward directions and the displacement can be distinguish without direction judgment circuit. It has an absolute zero code. When power is outage or turned off, when it is turned on and re-measured, the code of the power outage or shut down position can still be accurately read, and the zero code can be accurately found. ROUNDSS Absolute rotary encoder provide multiple interfaces:RS485, RS422, RS232, SSI, MODBUS, Canopen, parallel or analogue. The sensor has multiple shaft diameters are optional.
